Haws 8163 Concealed Ceiling Drench Shower with Stainless Steel Shower Head - Commercial & Residential Use for Spa, Gym, and Luxury Bathrooms

Concealed Ceiling Supply Emergency Drench Shower Station With Stainless Steel Showerhead And Extra Long Pull Rod , Meets ANSI Z358.1-2014 Requirements

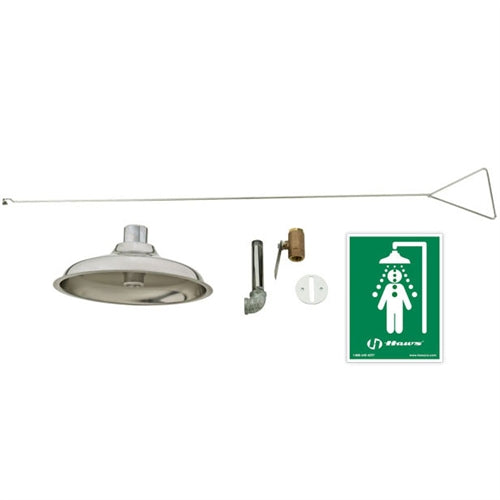

Model 8133H horizontally mounted drench shower shall include a stainless steel 10-1/2" showerhead with integral self-regulating 20 gpm flow control, Schedule 40 Stainless Steel pipe and fittings, Type 316 Stainless Steel stay-open ball valve equipped with a stainless steel ball and stem, stainless steel pull rod with triangular handle, universal sign, and 1" IPS supply.

SHOWERHEAD
AXION® MSR stainless steel showerhead uses a hydrodynamic design to give equal distribution of water throughout the entire footprint of flow.

VALVE
Valve is designed so the full flow of water remains on with the simple tug of the triangular pull rod. Unit also comes equipped with a stainless steel ball and stem to provide added protection against corrosion and breakage.

PULL ROD
Barrier-free designed unit comes equipped with 56" (142.2 cm) long pull rod to accommodate wheel chair access.

QUALITY CONTROL
Valve assembly is pre-built for reduced installation time and an added peace of mind for the installer.

SAFETY
8" x 10-3/4" (20.3 x 27.3 cm) universal emergency sign make the unit easily detected in an emergency. Test card to record weekly checks helps maintain the unit s best working quality.

Scald Protect Bleed Valve: Model SP157A, stainless steel scald protection bleed valve. Automatic thermal actuator bleed valve opens when internal water temperature reaches 98° F (36.7° C) and closes at 95° F (35° C).

Thermostatic Mixing Valve: Model 9201E AXION® Emergency Tempering Valve thermostatically mixes hot and cold water to provide a safe fluid supply for emergency showers and eyewash equipment, with a flow rate of 31 gpm (117.3 L).

Thermostatic Mixing Valve: Model 9201H Lead-free AXION® Emergency Tempering Valve thermostatically mixes hot and cold water to provide a safe fluid supply for emergency showers and eyewash equipment, with a flow rate of 31 gpm (117.3 L).

Emergency Alarm System: Model 9001, 1-1/4" 120 VAC emergency alarm and light system. Buzzer and flashing light are activated by an 1-1/4" double pole, double throw flow switch.
