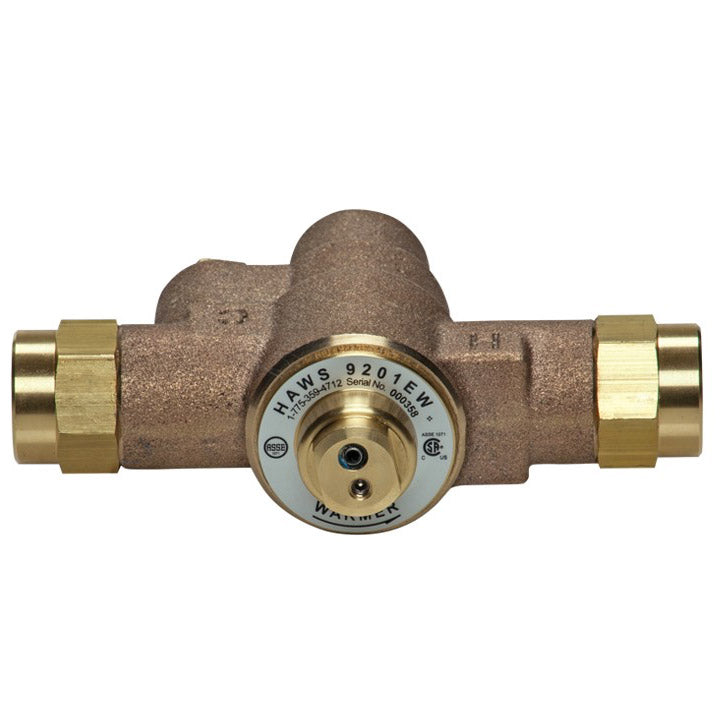

Haws 9201EW Thermostatic Mixing Valve for Shower & Bath - High Precision Temperature Control for Home & Commercial Use

Model 9201EW Emergency Valve thermostatically mixes hot and cold water to provide a safe fluid supply for a single emergency eye/face wash. Additionally, to ensure a fail-safe water supply for emergency eyewash stations, a cold water by-pass valves open in the event of hot water pressure loss. (No gauges supplied - ASSE 1071 standard recommends gauges be placed 5 to 8 feet (1.52 to 2.44 m) downstream for the most accurate temperature measurement.) A flow rate of 1 to 10 gpm (3.8 to 37.8 L) for better temperature control across the operating range. Wax based thermostat technology for fast response time with proven highly reliable temperature control. Cold Water Bypass flow rate of 3.8 gpm (14.4 L) (When tested under conditions specified in ASSE 1071). Modular brass design with supplied check valves. Oversized valve seats resist failures caused by foreign matter. 0.4 gpm (1.5 L) cold water failure rate when tested according to ASSE 1071. Efficient funnel design improves temperature control at low flow rates. Outlet temperature is factory set to 85F (29C). Tempered water: High temperature limit is factory set to 90F (32C). CSA Certifies this product to perform according to the ASSE 1071 standard and applicable sections of CSA B125.3

HAWS ORIGINAL
Designed and assembled with domestic and foreign parts in the US by Haws.

BYPASS
Best-in-class cold water bypass flow (65% of rated tempered water flow) means continued protection under adverse conditions.

POSITIVE SHUT OFF
Actively suspends hot water flow when cold water supply is lost to protect against scalding.

PRESSURE DROP
Lowest internal pressure drop for this valve class – essential where supply pressure is low.

TEMPERATURE MANAGEMENT
Paraffin-based thermal actuation technology keeps outlet temperature within tight specifications to prevent scalding and hypothermia.

SHUTTLE DESIGN
Superior shuttle design combined with premium material selection eliminates valve binding and reduces maintenance costs.

Lead Free
Certified to meet NSF/ANSI/CAN 372.

MIXING CHAMBER
Innovative funnel design generates turbulent flow to ensure consistent temperature blending across entire flow range.

DEPOSITS RESISTANT
Lime and calcium resistant materials used throughout prevent valve sticking and provide a long service life.

FLOW RATES
Flow range of 1 to 10 GPM (37.9 L) provides service for one emergency eye/face wash.

EXTENDED WARRANTY
3-year extended warranty based on superior engineering and best-in-class material selection means reliable protection you can trust for the long term.
