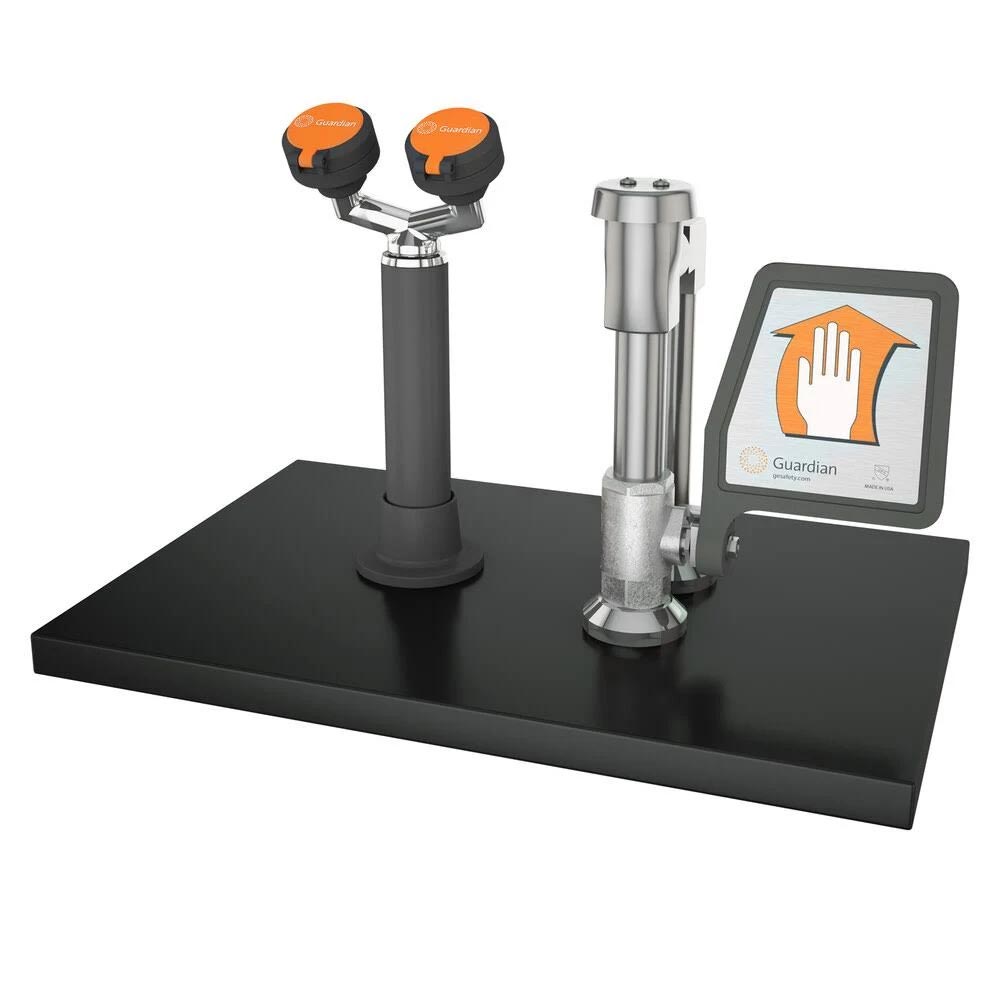

Guardian G5028VB Deck Mounted Emergency Eye Wash & Drench Hose Station - ANSI Compliant Safety Shower for Laboratories, Factories & Industrial Workplaces

Guardian G5028VB Deck Mtd Eye Wash/Drench Hose

Application:
Dual purpose eyewash/drench hose with ball valve and flag handle for deck mounting. Unit meets the provisions of ANSI Z358.1 -2014 as both an eyewash and a drench hose. Unit may be left in the deck flange for use as a fixed eyewash, leaving user’s hands free. Alternatively, unit may be removed for use as a drench hose to rinse any part of user’s eyes, face or body. Vacuum breaker prevents external water and contaminants from seeping back into supply line.

Spray Head Assembly:
Two GS-Plus™ spray heads mounted side-by-side. Each head has a “flip top” dust cover, internal flow control and filter to remove impurities from the water flow.

Valve:
1/2" IPS brass stay-open ball valve. Valve is US-made with chrome plated brass ball and PTFE seals.

Vacuum Breaker:
Atmospheric vacuum breaker installed on outlet of valve. Vacuum breaker is installed 6" above counter. Vacuum breaker is certified to comply with ASSE 1001/CSA-B64. Note: Check with code authority for compliance with local plumbing code.

Hose:
8’ reinforced PVC hose. 275 PSI maximum working pressure.

Mounting:
Eyewash assembly has deck flange for countertop mounting. Flange has handle locator guide to position spray heads facing forward at all times.

Supply:
1/2" NPT male inlet.

Sign:
ANSI-compliant identification sign.

Quality Assurance:
Unit is completely assembled and water tested prior to shipment.
