Guardian G5022VB Deck Mounted Eyewash & Drench Hose Unit with Vacuum Breaker - Emergency Eye Wash Station for Laboratories, Factories & Industrial Safety

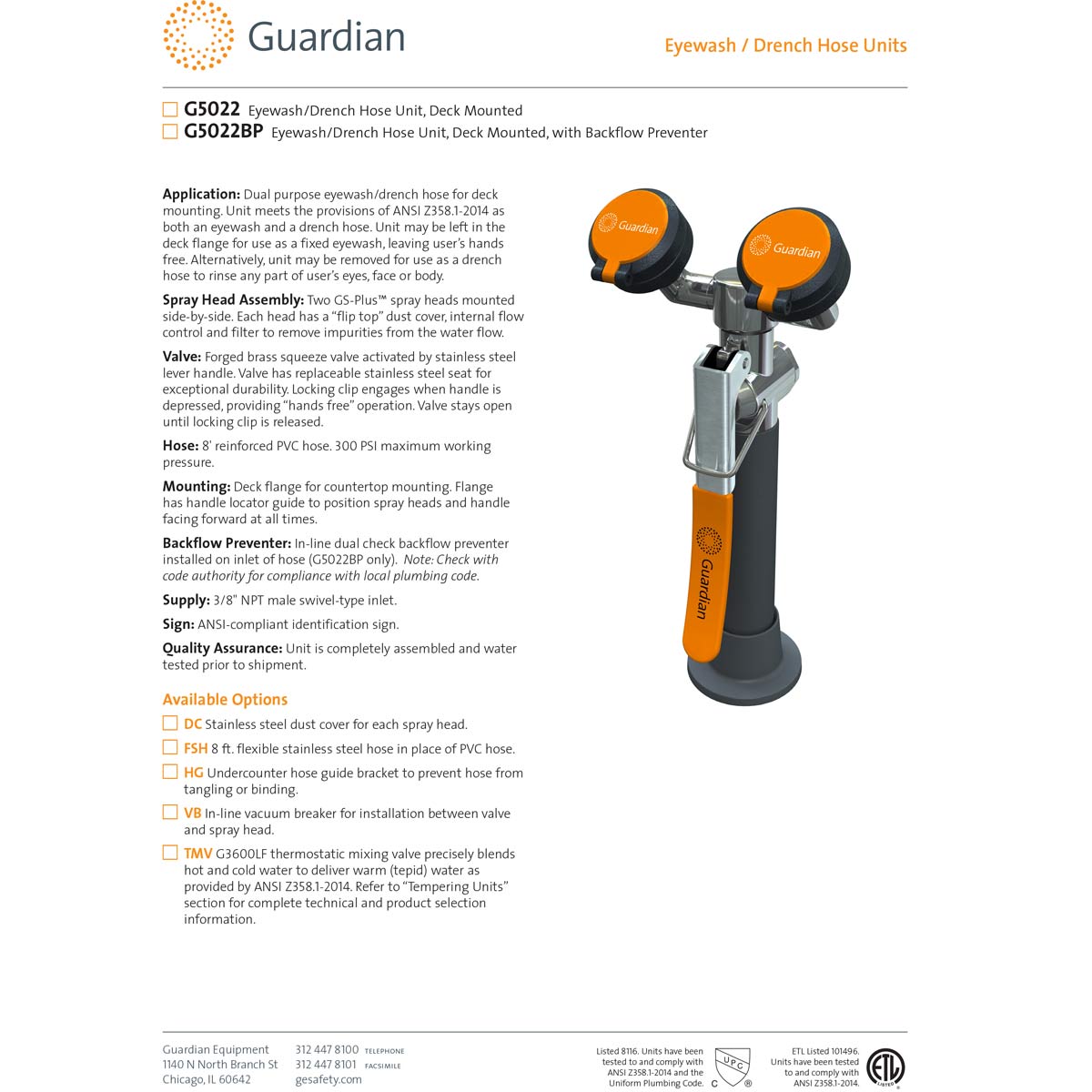

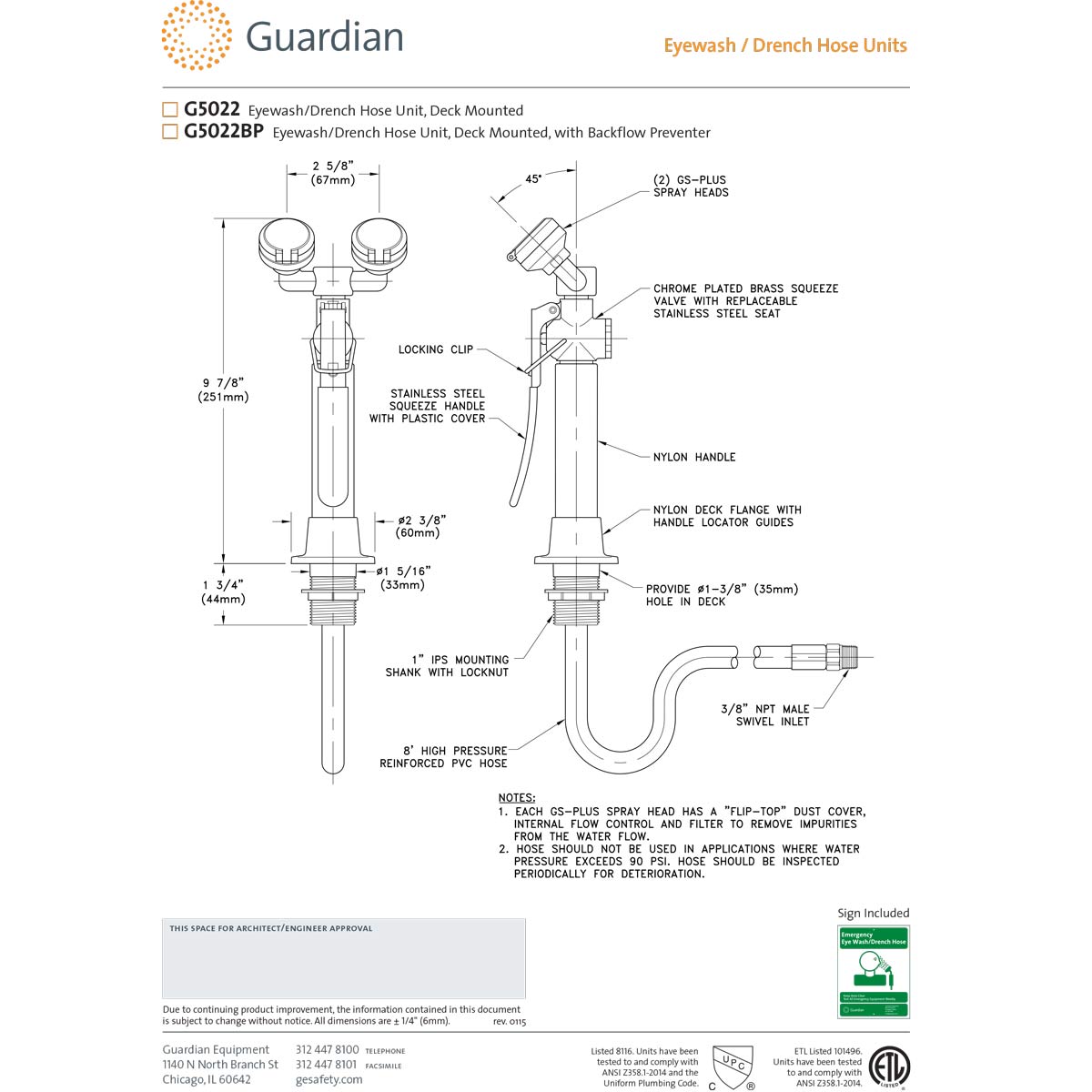

Guardian G5022VB Vacuum Breaker Eyewash/Drench Hose Unit, Deck Mounted


APPLICATION: Dual purpose eyewash/drench hose for deck mounting. Unit meets the provisions of ANSI Z358.1 - 2009 as both an eyewash and a drench hose. Unit may be left in the deck flange for use as a fixed eyewash, leaving user's hands free. Alternatively, unit may be removed for use as a drench hose to rinse any part of user's eyes, face or body.

SPRAY HEAD ASSEMBLY: Two GS-Plus spray heads mounted side-by-side. Each head has a "flip top" dust cover, internal flow control and filter to remove impurities from the water flow.

VALVE: Forged brass squeeze valve activated by stainless steel lever handle. Valve has replaceable stainless steel seat for exceptional durability. Locking clip engages when handle is depressed, providing "hands free" operation. Valve stays open until locking clip is released.

HOSE: 8' reinforced PVC hose. 300 PSI maximum working pressure.

MOUNTING: Deck flange for countertop mounting. Flange has handle locator guide to position spray heads and handle facing forward at all times.

SUPPLY: 3/8" NPT male swivel-type inlet.

SIGN: ANSI-compliant identification sign.

QUALITY ASSURANCE: Unit is completely assembled and water tested prior to shipment. br>
