Guardian G1629 Recessed Emergency Drench Shower - ANSI Compliant Safety Equipment for Chemical Spills & Eye Wash Stations - Ideal for Laboratories, Factories & Industrial Workplaces

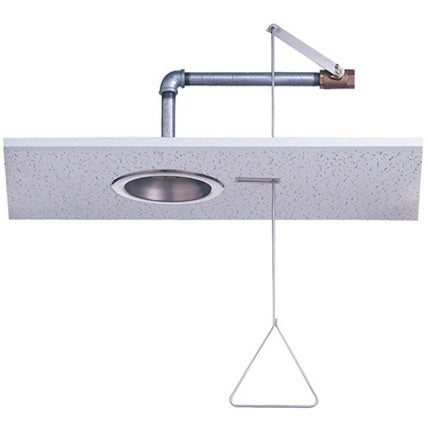

Easy-operating emergency shower with valve concealed in the ceiling. Flush mounted stainless steel shower head and stainless steel guide plate for pull rod provide for a clean, smooth appearance. Instant-action shower offers a large 20" diameter spray for complete drenching. Stainless steel actuating arm and pull rod activate the 1" IPS chrome-plated stay-open ball valve. 1" IPS inlet. Delivers 30 GPM at 30 PSI. Includes ANSI compliant identification sign. Unit meets ANSI Z358.1 standard as emergency shower.

APPLICATION: Emergency shower for recess mounting in a finished ceiling or soffit. Shower is activated by rigid pull rod.

SHOWER HEAD: 10" diameter with flange for flush mounting in ceiling. Shower head is stainless steel with stainless steel face plate.

VALVE:1" IPS brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon seals. Furnished with stainless steel actuating arm, 43" stainless steel pull rod and stainless steel ceiling guide plate.

PIPE AND FITTINGS: 1" IPS galvanized steel.

SUPPLY: 1" NPT female inlet.

SIGN: ANSI-compliant identification sign.
