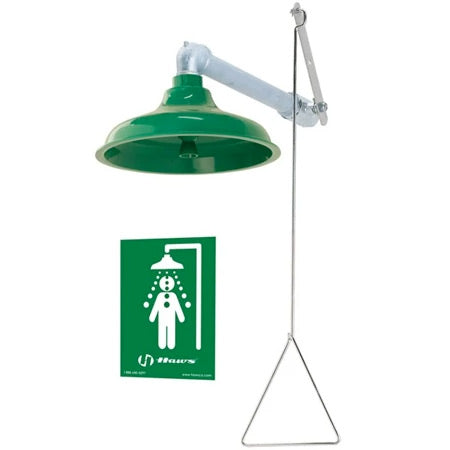

Haws 8122 AXION MSR Drench Shower with Plastic Showerhead - Universal Mount Emergency Safety Shower for Labs, Factories & Industrial Use

Horizontal Or Vertical Emergency Drench Shower With AXION MSR Green ABS Plastic Showerhead, Meets ANSI Z358.1-2014 Requirements

Model 8122 drench shower for horizontal or vertical installation shall include the AXION MSR hydrodynamic designed ABS plastic showerhead with self-regulating 20 gpm flow control, chrome-plated brass stay-open ball valve equipped with a stainless steel ball and stem, stainless steel pull rod with triangular handle, universal sign, and 1" IPS supply.

SHOWERHEAD
AXION® MSR ABS plastic drench showerhead uses a hydrodynamic design to give equal distribution of water throughout the entire footprint of flow.

BALL VALVE
Valve is designed so the full flow of water remains on with the simple tug of the triangular pull rod. Unit also comes equipped with a stainless steel ball and stem to provide added protection against corrosion and breakage.

CONSTRUCTION
1" Schedule 40 hot-dipped galvanized steel pipe and ttings provide a strong durability in a long lasting product.

QUALITY CONTROL
Valve assembly is pre-built for reduced installation time and an added peace of mind for the installer.

UNIVERSAL MOUNTING
Designed for horizontal or vertical installation, this drench shower is mounted sturdily from any wall or ceiling.

PULL ROD
28" (71.1 cm) stainless steel triangular pull rod provides a reachable height for users while maintaining its durable design.

SAFETY
8" x 10-3/4" (20.3 x 27.3 cm) universal emergency sign make the unit easily detected in an emergency. Test card to record weekly checks helps maintain the units best working quality.

OPTIONS
Scald Protect Bleed Valve:
Model SP157A, stainless steel scald protection bleed valve. Automatic thermal actuator bleed valve opens when internal water temperature reaches 98° F (36.7° C) and closes at 95° F (35° C).

Thermostatic Mixing Valve:
Model 9201E AXION® Emergency Tempering Valve thermostatically mixes hot and cold water to provide a safe fluid supply for emergency showers and eyewash equipment, with a flow rate of 31 gpm (117.3 L).

Emergency Alarm System:
Model 9001, 1-1/4" 120 VAC emergency alarm and light system. Buzzer and flashing light are activated by an 1-1/4" double pole, double throw flow switch.

Curtain:
Model 9037, privacy curtain designed to be used on horizontal emergency drench shower or combination emergency drench shower and eyewash units.

SPECIFICATIONS
Model 8122 drench shower for horizontal or vertical installation shall include the AXION® MSR hydrodynamic designed ABS plastic showerhead with self-regulating 20 gpm flow control, chrome-plated brass stay-open ball valve equipped with a stainless steel ball and stem, stainless steel pull rod with triangular handle, universal sign, and 1″ NPT supply.

APPLICATIONS
Where the body of any person may be exposed to injurious or corrosive materials, suitable facilities for quick drenching and cleansing of the body shall be provided within the work area for immediate emergency use. Emergency deluge showers shall be in unobstructed and accessible locations that require no more than 10 seconds for the injured person to reach. Model 8122 is Certied by CSA to meet the ANSI/ISEA Z358.1 Standard for Emergency Eyewash and Shower Equipment.
