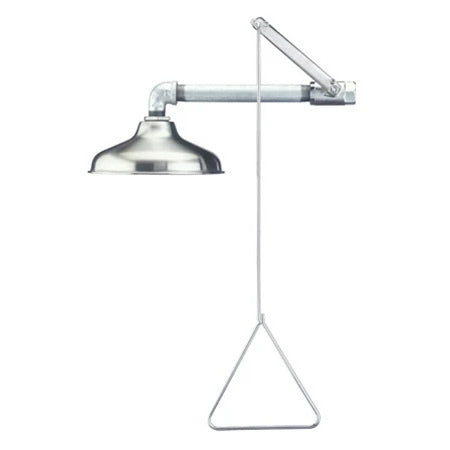

Guardian G1643SSH Stainless Steel Emergency Drench Shower - Horizontal Mount Safety Shower for Laboratories & Industrial Use

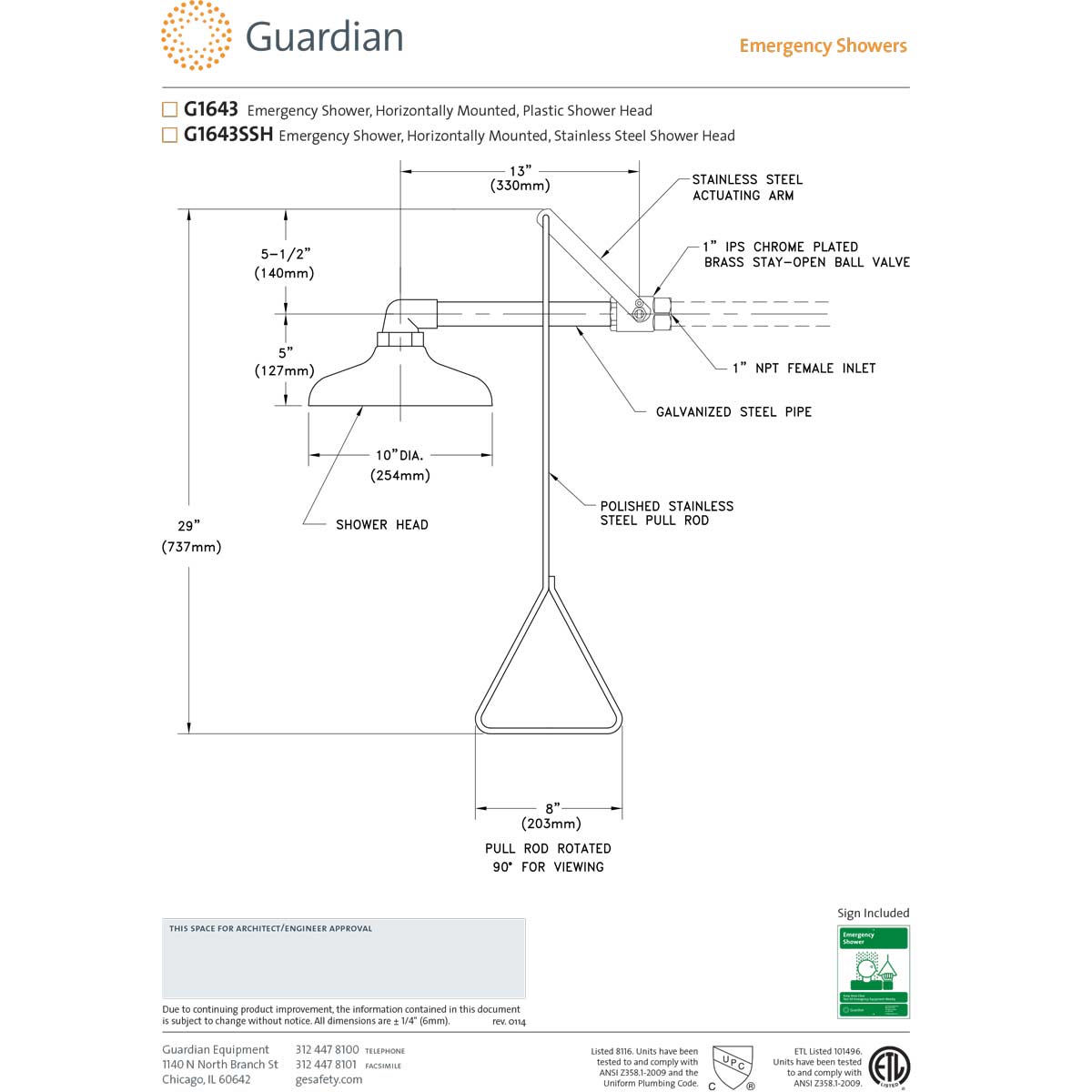

Easy-operating, horizontally mounted instant-action shower offers a large 20" diameter spray for complete drenching. Stainless steel actuating arm and pull rod activate the 1 in IPS chrome-plated stay-open ball valve. 1 in IPS inlet. Delivers 30 GPM at 30 PSI. Stainless steel shower head. Includes hot dipped galvanized steel pipe and fittings and ANSI compliant identification sign. Unit meets ANSI Z358.1 standard as emergency shower.

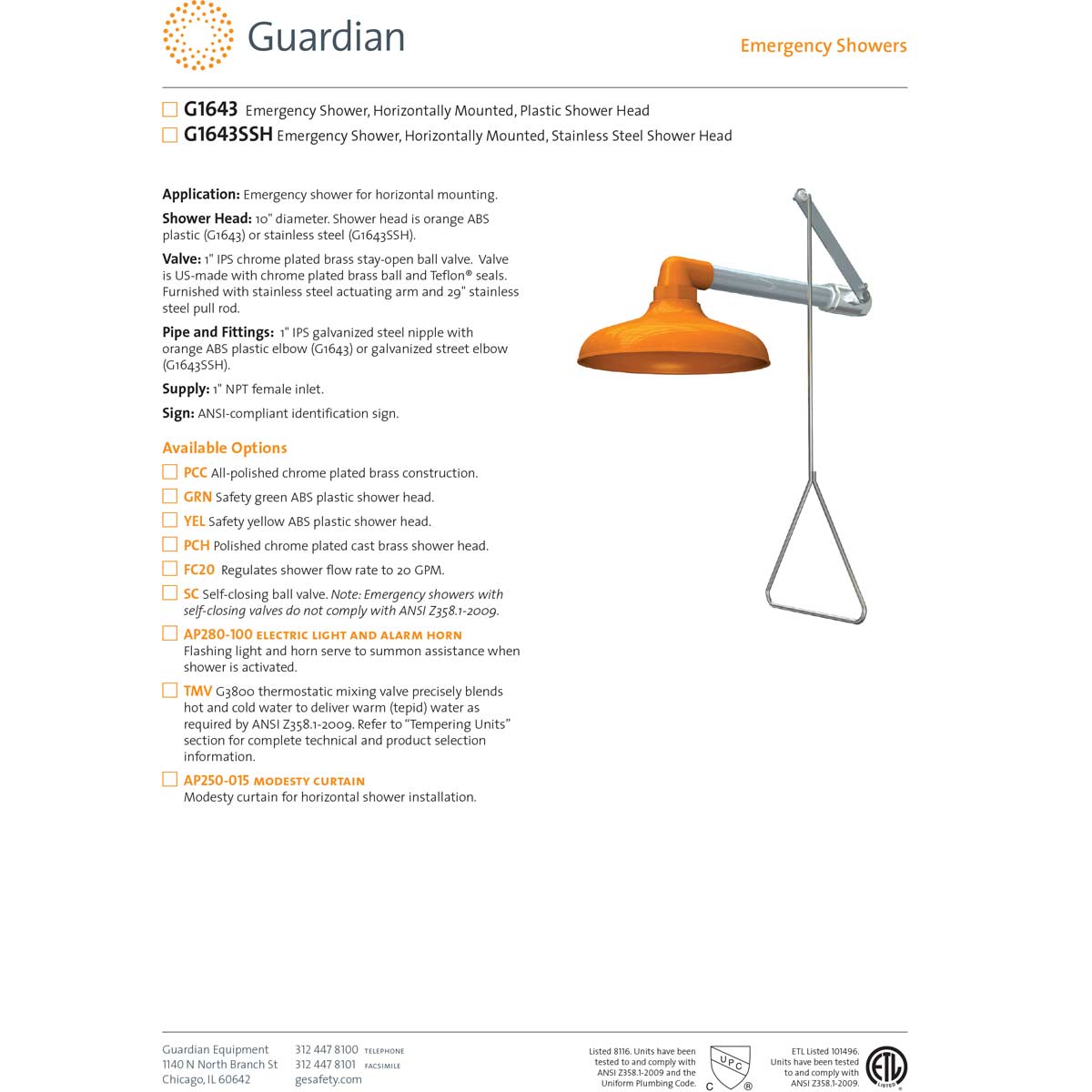

APPLICATION: Emergency shower for horizontal mounting.

SHOWER HEAD: 10" diameter stainless steel.

VALVE: 1" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon seals. Furnished with stainless steel actuating arm and 29" stainless steel pull rod.

PIPE AND FITTINGS: 1" IPS galvanized steel nipple with orange ABS plastic elbow.

SUPPLY: 1" NPT female inlet.

SIGN: ANSI-compliant identification sign.
