Haws 7460 AXION MSR Emergency Eyewash Station with Unmounted Stainless Steel Bowl - Ideal for Laboratories, Factories & Industrial Safety Use

Unmounted Stainless Steel Eye/Face Wash Station With AXION MSR Eye/Face Wash Head, Meets ANSI Z358.1-2014 Requirements

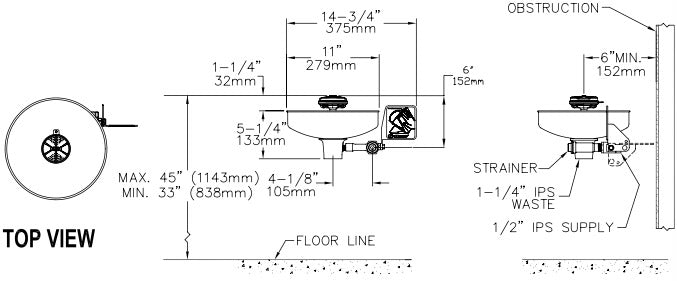

Model 7460 unmounted eye/face wash shall include a stainless steel 11" round bowl, an antimicrobially treated AXION MSR eye/face wash head to help protect against the growth of mold and mildew on the treated components, and shall feature inverted directional laminar flow which achieves zero vertical velocity supplied by an integral 3.7 gpm flow control, and a chrome-plated brass stay-open ball valve equipped with stainless steel ball and stem. Unit shall also include a chrome-plated brass in-line 50 x 50 mesh water strainer, yellow plastic pop-off dust cover for eyewash head, universal sign, 1/2" IPS inlet, and 1-1/4" IPS waste.

QUALITY CONTROL
Eye/face wash and valve assembly are pre-built and fully water/pressure tested to ensure no leaks and proper function which ultimately reduces installation time.

EYE/FACE WASH
AXION® MSR eye/face wash head uses an inverted directional laminar flow to sweep contaminants away from the vulnerable nasal cavity.

BOWL
The 11" (27.9 cm) round stainless steel receptor is supplied with a No. 2L bright nish on its exterior.

VALVE
Valve is designed to make the flushing of fluid occur with the push of a stainless steel flag, and is equipped with a stainless steel ball and stem to provide added protection against corrosion and breakage.

STRAINER
Chrome-plated brass in-line 50 x 50 mesh water strainer prevents debris from reaching the eyewash so the unit stays functioning at its best. Strainer is easily serviceable.


✅ Scald Protect Bleed Valve:
Model SP157A, stainless steel scald protection bleed valve. Automatic thermal actuator bleed valve opens when internal water temperature reaches 98° F (36.7° C) and closes at 95° F (35° C).

✅ Thermostatic Mixing Valve:
Model 9201EW AXION® Emergency Tempering Valve thermostatically mixes hot and cold water to provide a safe fluid supply for a single emergency eye/face wash, with a flow rate of 10 gpm (38.8 L).

✅ Dust Cover:
Model 9102 is a stainless steel cover that protects the eyewash heads as well as the bowl.

✅ Emergency Alarm System:
Model 9001.5, 1/2" 120 VAC emergency alarm and light system. Buzzer and flashing light are activated by a 1/2" IPS double pole, double throw flow switch.
