Guardian G1658 Emergency Drench Shower - ANSI Compliant Semi-Concealed Safety Shower for Chemical Spills & Workplace Safety | Lab, Factory, Industrial Use

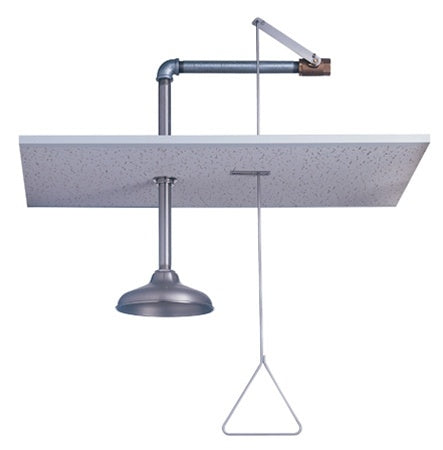

Easy-operating emergency shower with valve concealed in the ceiling. Vertical stainless steel nipple with exposed stainless steel shower head and stainless steel guide plate for pull rod provide for a clean, smooth appearance. Instant-action shower offers a large 20" diameter spray for complete drenching. Stainless steel actuating arm and pull rod activate the 1" IPS chrome-plated stay-open ball valve. 1" IPS inlet. Delivers 30 GPM at 30 PSI. Includes ANSI compliant identification sign. Unit meets ANSI Z358.1 standard as emergency shower.

Application: Emergency shower for semi-concealed mounting in a finished ceiling. Unit is designed for installation in ceilings 8-10 feet above finished floor.

Shower Head: Shower head is 10" diameter stainless steel. Furnished with vertical supply pipe and ceiling escutcheon for mounting shower head at desired height above finished floor.

Valve: 1" IPS brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon seals. Furnished with stainless steel actuating arm, 63 1/2" stainless steel pull rod and stainless steel ceiling guide plate.

Pipe and Fittings: Exposed pipe and ceiling escutcheon are brushed stainless steel.

Supply: 1" NPT female inlet.

Sign: ANSI-compliant identification sign. br>
