Guardian G5014BP Wall Mounted Eyewash & Drench Hose Unit with Backflow Preventer - Emergency Eye Wash Station for Laboratories, Factories & Industrial Safety

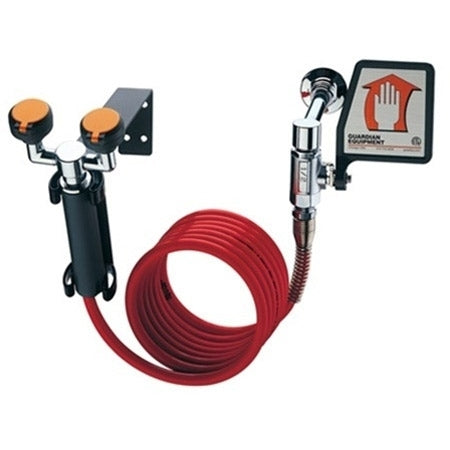

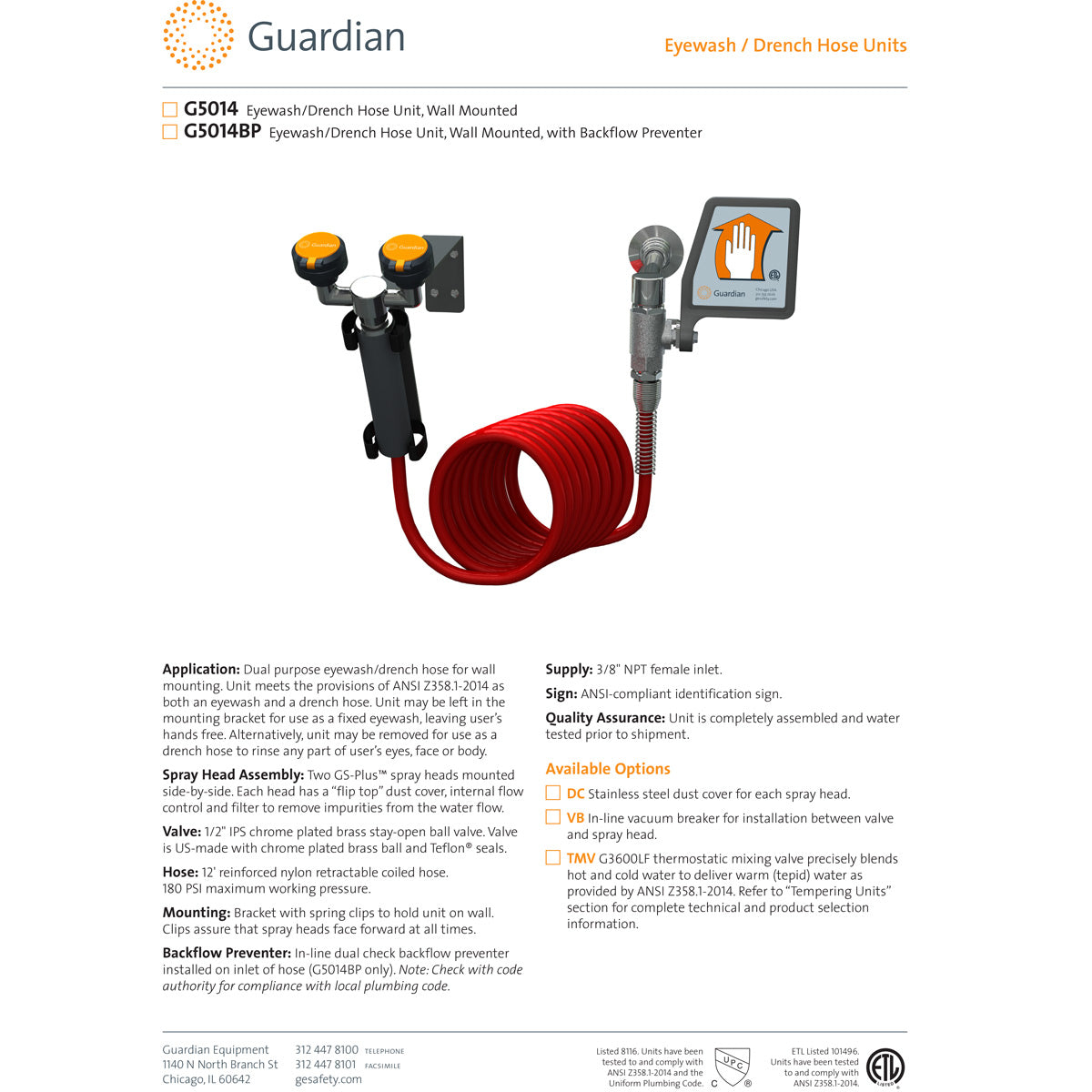

Guardian G5014BP Eyewash/Drench Hose Unit, Wall Mounted w/ Backflow Preventer

Application: Dual purpose eyewash/drench hose with ball valve and flag handle for wall mounting. Unit meets the provisions of ANSI Z358.1-2014 as both an eyewash and a drench hose. Unit may be left in the mounting bracket for use as a fixed eyewash, leaving user’s hands free. Alternatively, unit may be removed for use as a drench hose to rinse any part of user’s eyes, face or body. 12’ nylon retractable hose coils to eliminate trip hazard.

Spray Head Assembly: Two GS-Plus™ spray heads mounted side-by-side. Each head has a “flip top” dust cover, internal flow control and filter to remove impurities from the water flow.

Valve: 1/2" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and PTFE seals.

Hose: 12' reinforced nylon retractable coiled hose. 180 PSI maximum working pressure.

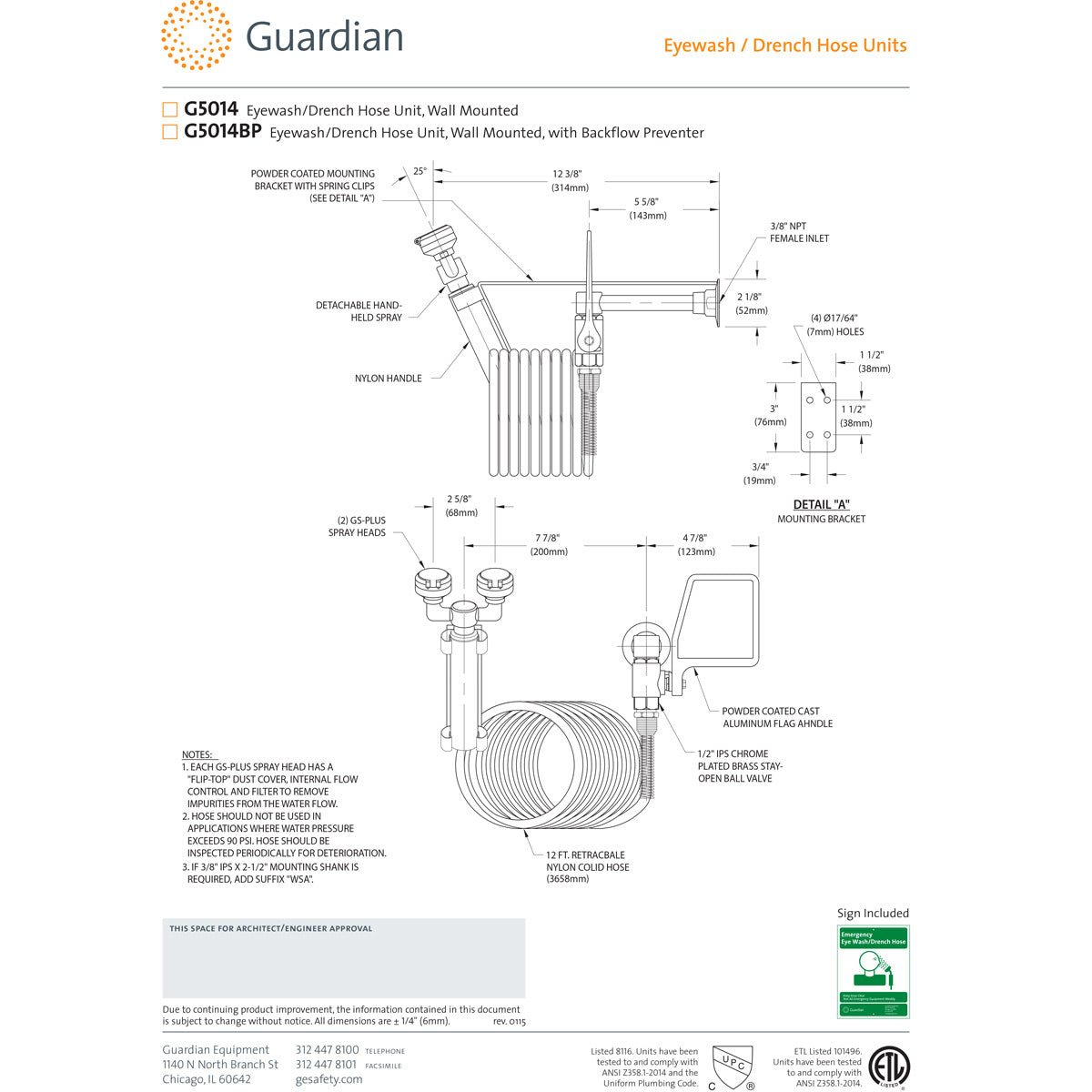

Mounting: Bracket with spring clips to hold unit on wall. Clips assure that spray heads face forward at all times.

Backflow Preventer: In-line dual check backflow preventer installed on inlet of hose (G5014BP only). ASSE 1024 Listed. Note: Check with code authority for compliance with local plumbing code.

Supply: 3/8" NPT female inlet.

Sign: ANSI-compliant identification sign.

Quality Assurance: Unit is completely assembled and water tested prior to shipment.
