Guardian GBF1724 Barrier-Free Eye & Face Wash Station - Wall Mounted Emergency Safety Equipment for Labs, Hospitals & Industrial Use

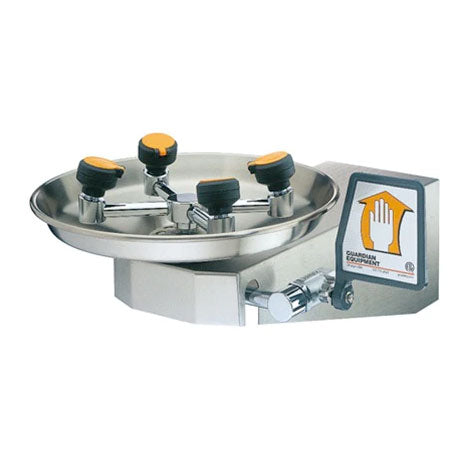

Handicapped accessible WideArea eye/face wash for wall mounting. Unit features 11-1/2" stainless steel bowl and welded stainless steel wall bracket. Never lose dust covers again! Spray head assembly has four Gentle Spray outlet heads with "flip-top" dust covers mounted on chrome plated brass supply arms. Activated by a 1/2" IPS chrome plated brass stay-open ball valve with cast aluminum flag handle. Bowl acts like a sink to drain water away. Unit meets ANSI Z358.1 standard as primary eye/face wash. Fully factory assembled and water tested. Complete with ANSI compliant identification sign.

APPLICATION: Handicapped accessible WideArea eye/face wash for wall mounting. Bowl is lowered and extended to permit access by wheelchair user. Profile of unit is "flattened" to comply with maximum height and knee clearance requirements.

ADA COMPLIANCE: When installed at recommended mounting height, unit complies with ADA requirements for accessibility by handicapped persons (maximum height and reach, minimum knee clearance and distance from obstructions).

SPRAY HEAD ASSEMBLY: Four GS-Plus spray heads. Each head has a "flip top" dust cover, internal flow control and filter to remove impurities from the water flow.

VALVE: 1/2" IPS chrome plated brass stay-open ball valve with flag handle. Valve is US-made with chrome plated brass ball and Teflon seals.

BOWL: 11 1/2" stainless steel.

MOUNTING: Welded stainless steel bracket for wall mounting.

SUPPLY: 1/2" IPS female inlet.

WASTE: 1 1/2" OD chrome plated brass tailpiece.

SIGN: ANSI-compliant identification sign.

QUALITY ASSURANCE: Unit is completely assembled and water tested prior to shipment. br>
