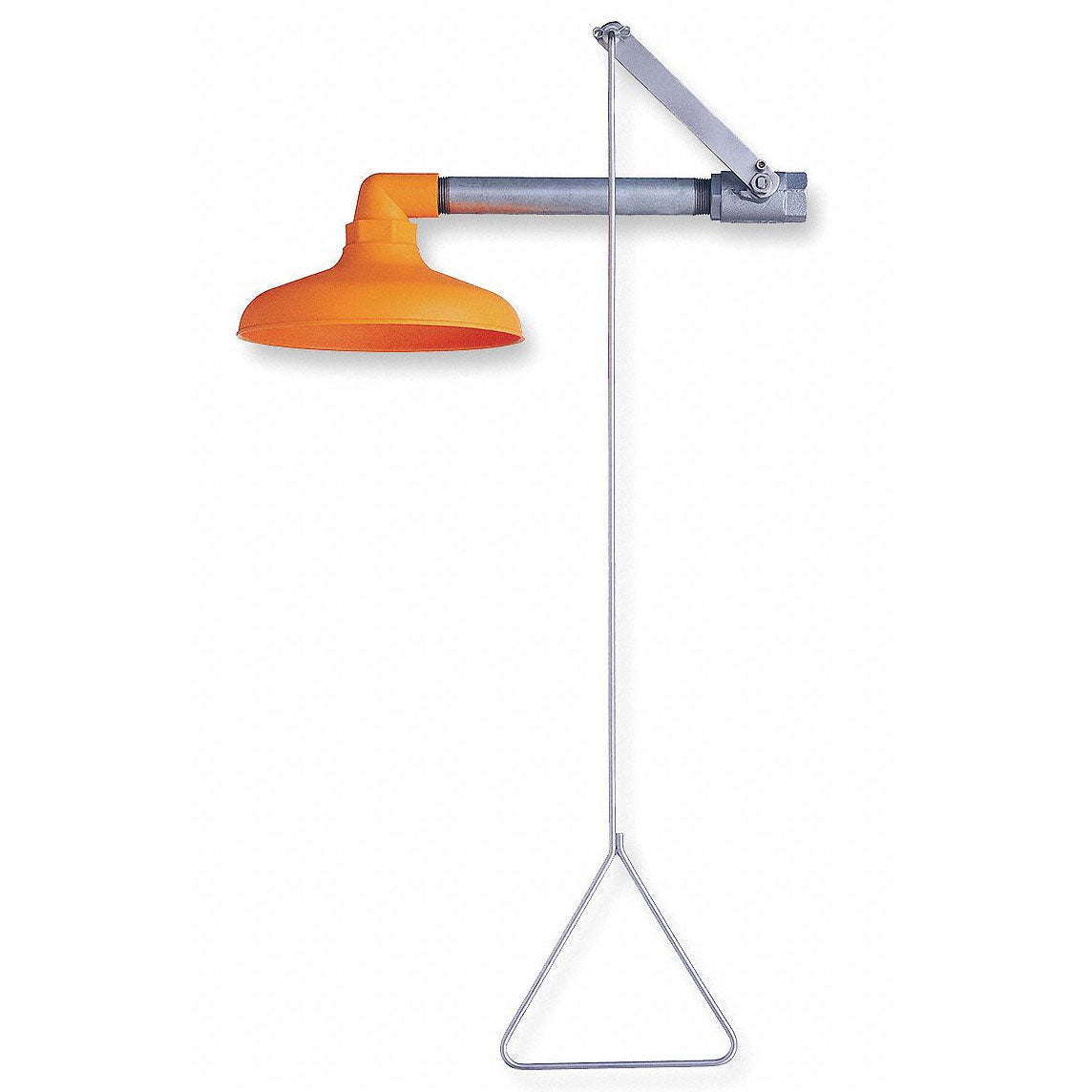

Guardian GBF1643 Barrier-Free Emergency Shower with Horizontal Mount Plastic Shower Head - Ideal for Laboratories, Factories & Chemical Workplaces

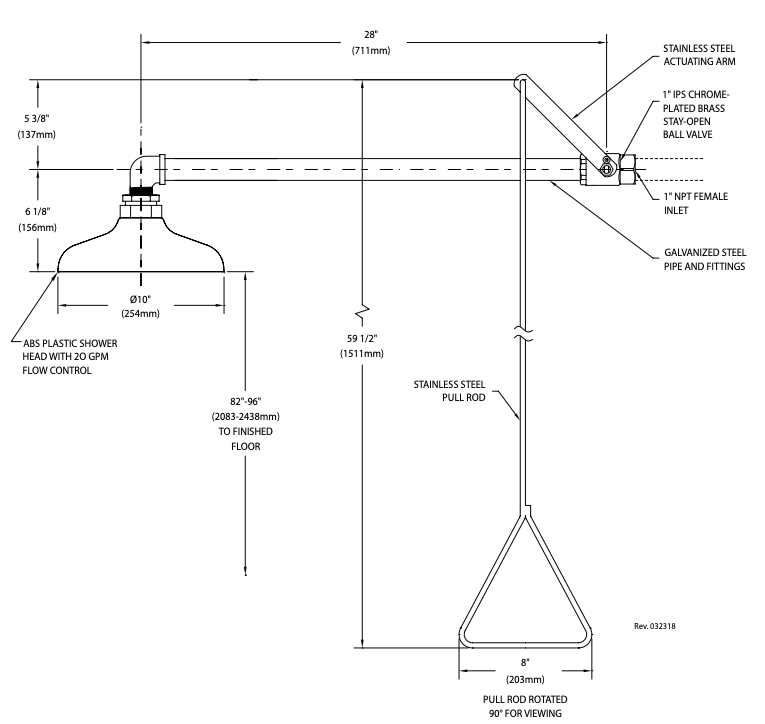

APPLICATION: Handicapped accessible emergency shower for horizontal mounting. Unit should be installed so that shower head is at least 82" above floor and 32" from wall or nearest obstruction.

ADA COMPLIANCE: When installed at recommended mounting heights, unit complies with ADA requirements for accessibility by handicapped persons (maximum height and reach and distance from obstructions).

SHOWER HEAD: 10" diameter orange ABS plastic.

VALVE: 1" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon seals. Furnished with stainless steel actuating arm and 59 1/2" stainless steel pull rod.

PIPE AND FITTINGS: 1" IPS galvanized steel nipple with orange ABS plastic elbow.

SUPPLY: 1" NPT female inlet.

SIGN: ANSI-compliant identification sign.
