GBF1670 Recessed Emergency Shower with Exposed Shower Head - ANSI Compliant Safety Equipment for Laboratories & Industrial Workplaces

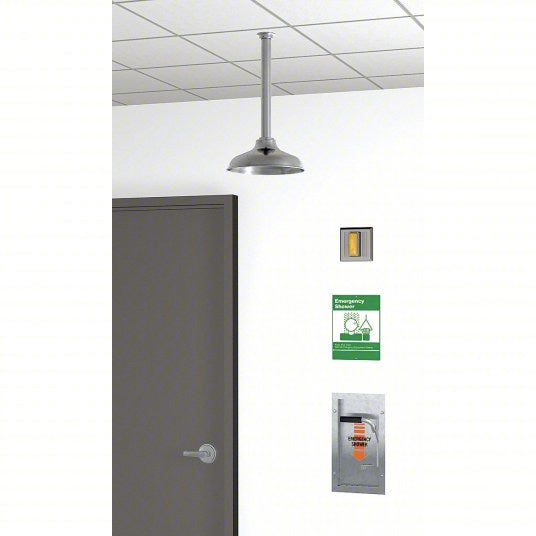

Barrier-free recessed emergency shower with ceiling mounted exposed stainless steel shower head and nipple. Recessed shower actuation conserves valuable floor space. Shower is activated by 1" brass stay-open ball valve with stainless steel "panic bar". Unit is furnished with stainless steel access panel and 1" IPS unions for valve, effectively concealing all valve components within the finished wall. Valve is completely assembled and water tested prior to shipment. Unit meets ANSI Z358.1 standard as an emergency shower. Complete with ANSI compliant identification sign.

APPLICATION: Recessed emergency shower with ceiling mounted exposed shower head. Recessed shower conserves valuable floor space, while eliminating the clutter and obstruction created by conventional shower equipment. Unit can be installed in either a corridor or a lab room, close to where accidents might occur.

ADA COMPLIANCE: When installed at recommended mounting heights, unit complies with ADA requirements for accessibility by handicapped persons. shower head: 10" diameter stainless steel. Furnished with vertical supply pipe and ceiling escutcheon for mounting shower head at desired height below finished ceiling.

VALVE: 1" IPS brass stay-open ball valve with stainless steel "panic bar." Pulling bar down activates shower; shower remains in operation until bar is returned to original closed position. Furnished with stainless steel access panel and 1" IPS unions for valve.

PIPE AND FITTINGS: Exposed pipe and escutcheon are brushed stainless steel.

SUPPLY: 1" NPT female inlet.

SIGN: ANSI-compliant identification sign.

U.S. PATENT 5,768,721
